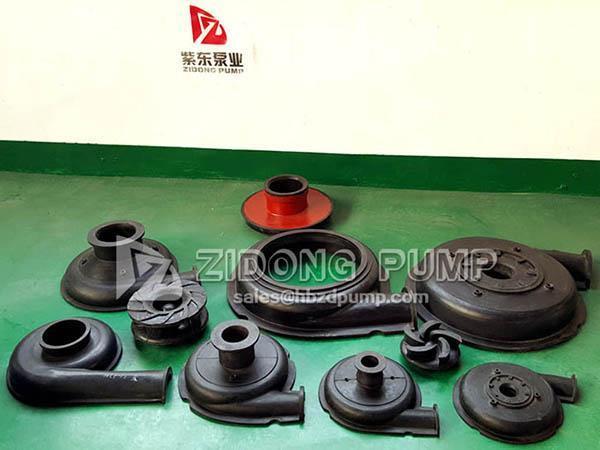

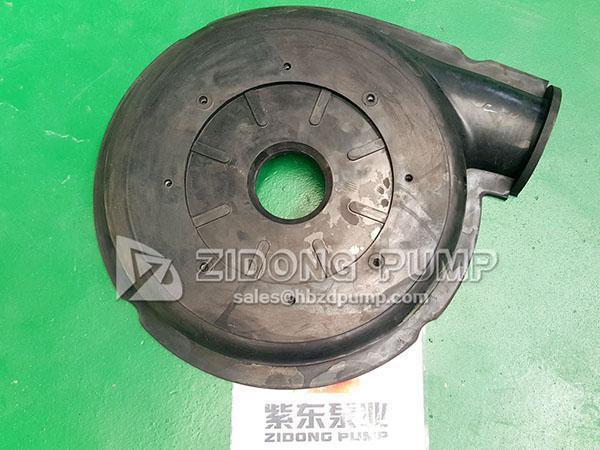

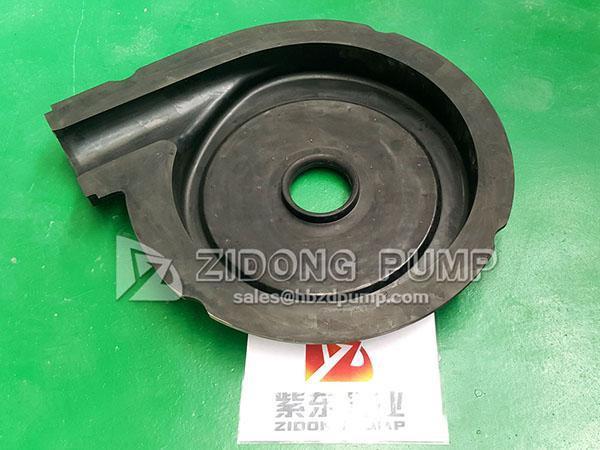

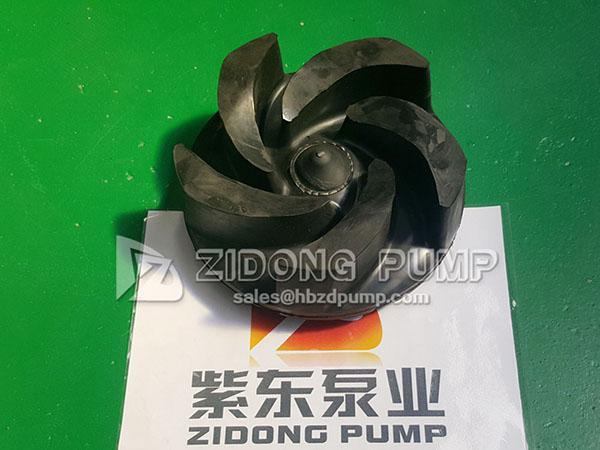

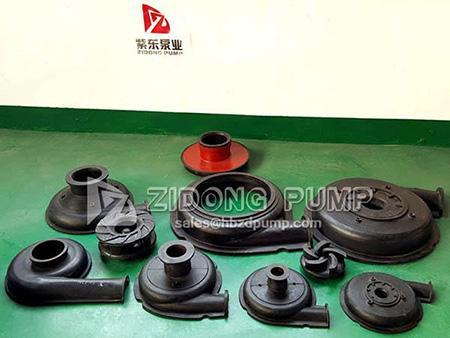

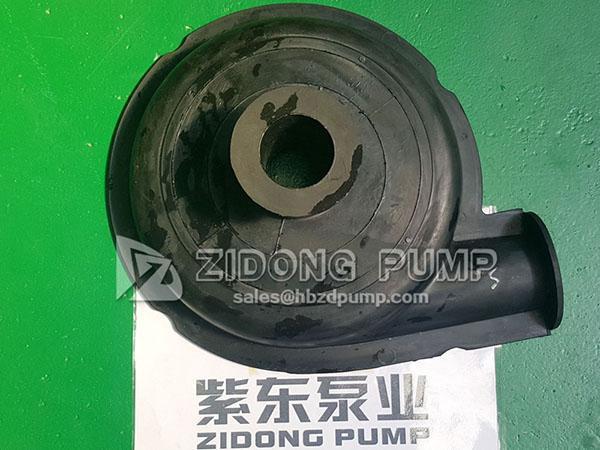

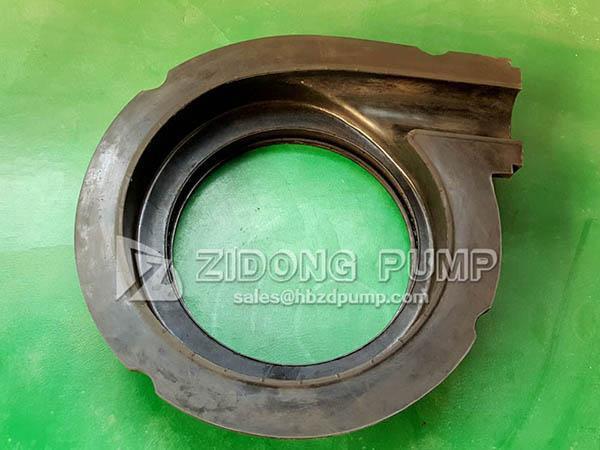

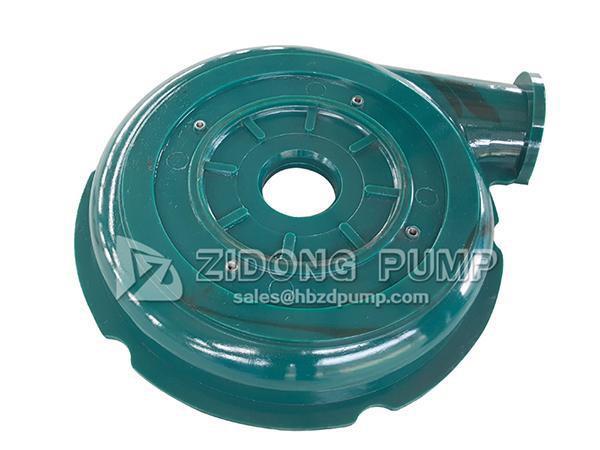

Rubber Pump Flow Components
Rubber material features a strong wear and corrosion resistance. Pumps with rubber wet ends are especially suitable for acidic working conditions, as well as conveying material that contains small, rounded particles, such as tailing transportation in the mining industry.
The most common material for rubber wet ends is natural rubbers such as R26, R55 and R23. These materials have am outstanding wear-resistance, chemical resistance and water-proof performance. With a working temperature range of -40℃~75℃, most working condition requirements are met.
Among these, the performance index of R26 and R55 are as follows:| Item | R26 | R55 |
| Hardness (shoreA) | 41±4 | 52±3 |
| 300% stretching strength (N/cm2) | Above 190 | Above 400 |
| Breaking strength (N/cm2) | Above 2000 | Above 2200 |
| Prolongation break (%) | Above 500 | Above 500 |
| Pull-apart magnet deformation (%) | Below 30 | Below 25 |
| Pull strength (μg/cm2) | Below 40 | Below 40 |
- Synthetic rubber
- EPDM
- Butyronitrile rubber
- Fluoro rubber
- Any other rubber that you wanted
| Pump Model | Our Part Number | Replaced Part Number |
| 1.5/1B-ZH(R) | ZD-B1052 | B1052 |
| 2/1.5B-ZH(R) | ZD-B15127 | B15127 |

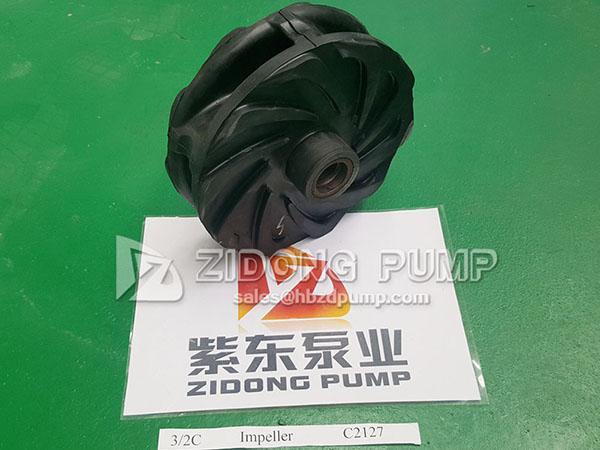

| 3/2C-ZH(R) | ZD-C2127 | C2127 |
| 4/3C/D-ZH(R) | ZD-D3147 | D3147 |
| 6/4D/E-ZH(R) | ZD-E4147R | E4147R |
| 8/6E-ZH(R) | ZD-F6147 | F6147 |
| Pump Model | Our Part Number | Replaced Part Number |
| 6/4D/E-ZH(R) | ZD-E4083R | E4083R |
| Pump Model | Our Part Number | Replaced Part Number |
| 1.5/1B-ZH(R) | ZD-B1017/1036 | B1017/1036 |
| 2/1.5B-ZH(R) | ZD-B15012/15036 | B15012/15036 |
| 3/2C-ZH(R) | ZD-C2017/2036 | C2017/2036 |
| 4/3C/D-ZH(R) | ZD-D31017/3036 | D31017/3036 |
| 6/4D/E-ZH(R) | ZD-E4018R/4036R | E4018R/4036R |
| 8/6E-ZH(R) | ZD-F6018/6036 | F6018/6036 |
| Pump Model | Our Part Number | Replaced Part Number |
| 1.5/1B-ZH(R) | ZD-B029R | B029R |
| 2/1.5B-ZH(R) | ZD-B029R | B029R |
| 3/2C-ZH(R) | ZD-C029R | C029R |
| 4/3C-ZH(R) | ZD-CAM029R | CAM029R |
| 4/3D-ZH(R) | ZD-D029RM | D029RM |
| 6/4D-ZH(R) | ZD-DAM029R | DAM029R |
| 6/4E-ZH(R) | ZD-E029RM | E029RM |
| 8/6E-ZH(R) | ZD-EAM029RM | EAM029RM |
