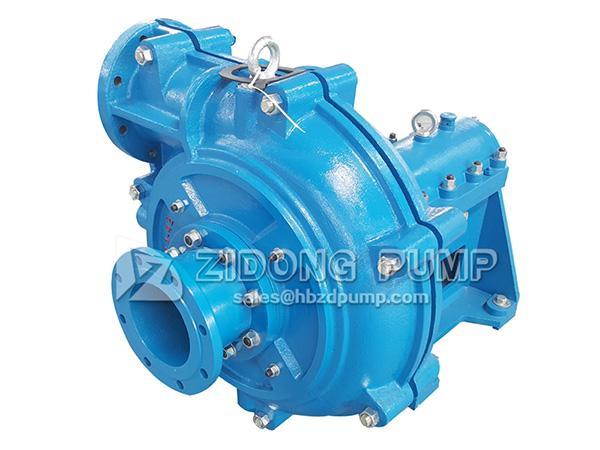

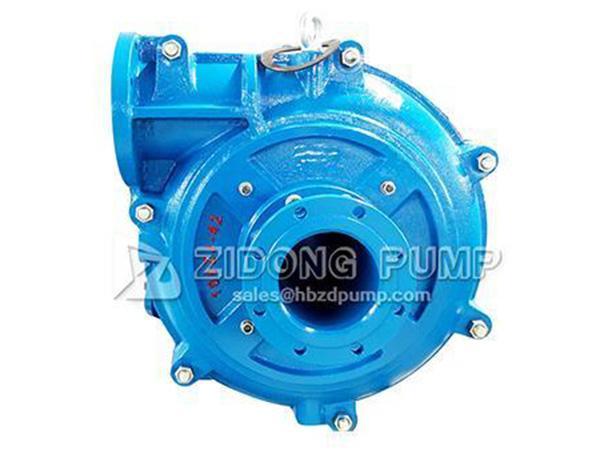

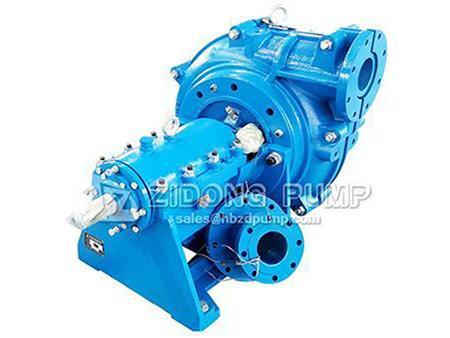

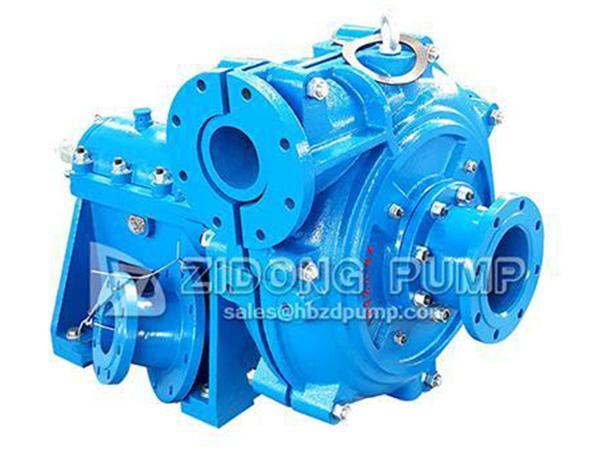

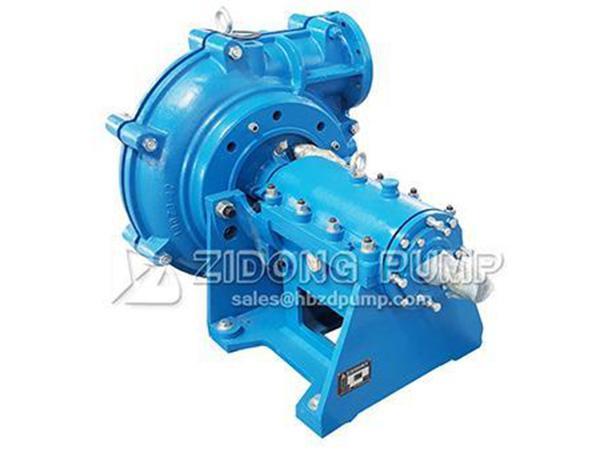

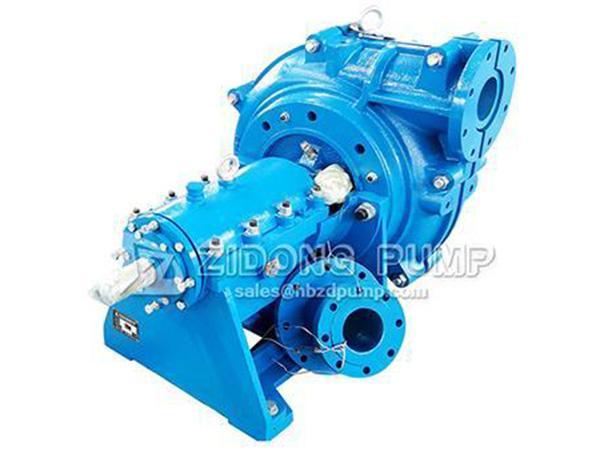

Horizontal Centrifugal Pump ZJ Series
- Flow range: 12-5040m3/h
- Head range: 5-118m
- Matching power: 60-600KW
- Wet ends materials: high chromium alloy wear-resistant metal
- Diameter range: DN25-DN400
- Speed: 300-3800r/min
- Working temperature: ≤80℃
- Structure: single stage, single suction, cantilevered, horizontal, centrifugal
The ZJ series horizontal centrifugal pump is an upgraded version of both the ZHH and ZH series pumps. The impeller diameter is larger, and the vans are thinner, with ribs on the surface of the pump casing and cover in order to improve the pump stability and durability. This pump series is widely used for handling abrasive and corrosive slurry with solid particles. It is widely used in electricity, metallurgy, coal, building material, chemical and other industries.

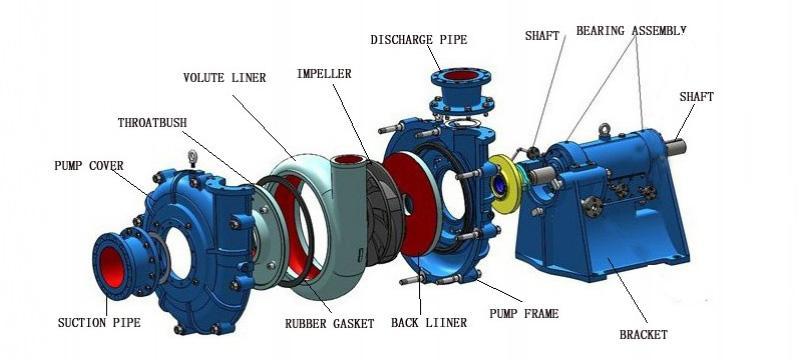

Structure

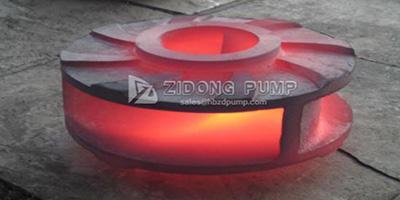

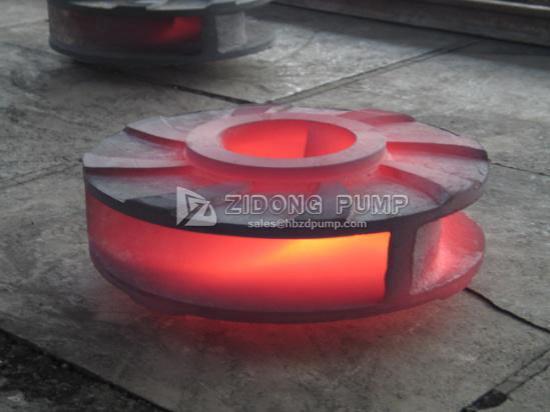

- The wet ends are made of high-chromium hard alloy cast iron, and feature a high resistance to wear, corrosion and impact.
- The bearing is dilute oil lubricated.
Selection table (Clear water performance)
1. 300ZJ-I-A100 Horizontal Centrifugal Pump| Clean water performance | Matching motor | |||||||
| Speed r/min | Flow rate (m3/h) | Head (m) | Shaft power (kW) | Max. Efficiency (η%) | NPSH (m) | Model | Power (kW) | Voltage (V) |
| 590 | 913 | 65.2 | 243 | 66.7 | 4.1 | Y450-10 | 315 | 6000 |
| 1785 | 59.7 | 361 | 80.4 | Y500-10 | 450 | |||
| 1826 | 59.3 | 365.4 | 80.7 | Y500-10 | 450 | |||
| 490 | 758 | 45 | 139.3 | 66.7 | 3 | Y450-12 | 185 | |
| 1482 | 41.2 | 206.8 | 80.4 | Y450-12 | 250 | |||
| 1517 | 40.9 | 209.4 | 80.7 | Y450-12 | 250 | |||
| Clean water performance | Matching motor | |||||||
| Speed r/min | Flow rate (m3/h) | Head (m) | Shaft power (kW) | Max. Efficiency (η%) | NPSH (m) | Model | Power (kW) | Voltage (V) |
| 590 | 867 | 58.8 | 217.9 | 63.7 | 4.1 | Y450-10 | 280 | 6000 |
| 1696 | 53.9 | 321.6 | 77.4 | Y500-10 | 400 | |||
| 1735 | 53.5 | 325.3 | 77.7 | Y500-10 | 400 | |||
| 490 | 720 | 40.6 | 125 | 63.7 | 3 | Y450-12 | 185 | |
| 1408 | 37.2 | 184.3 | 77.4 | Y500-12 | 220 | |||
| 1441 | 36.9 | 186.4 | 77.7 | Y500-12 | 220 | |||
| Clean water performance | Matching motor | |||||||||
| Speed r/min | Flow rate (m3/h) | Head (m) | Shaft power (kW) | Max. Efficiency (η%) | NPSH (m) | Model | Power (kW) | Voltage (V) | ||
| 730 | 922 | 79.9 | 290.3 | 69.1 | 5.7 | Y450-8 | 355 | 6000 | ||
| 1648 | 73.6 | 410.3 | 80.5 | Y500-8 | 500 | |||||
| 1844 | 70.7 | 436.2 | 81.4 | Y500-8 | 560 | |||||
| 590 | 745 | 52.2 | 153.3 | 69.1 | 3.9 | Y450-10 | 185 | |||
| 1332 | 48.1 | 216.7 | 80.5 | Y450-10 | 280 | |||||
| 1490 | 46.2 | 230.3 | 81.4 | Y450-10 | 280 | |||||
| Clean water performance | Matching motor | |||||||
| Speed r/min | Flow rate (m3/h) | Head (m) | Shaft power (kW) | Max. Efficiency (η%) | NPSH (m) | Model | Power (kW) | Voltage (V) |
| 730 | 871 | 71.3 | 255.9 | 66.1 | 5.6 | Y450-8 | 315 | 6000 |
| 1556 | 65.6 | 358.7 | 77.5 | Y450-8 | 450 | 6000 | ||
| 1742 | 63.1 | 381.8 | 78.4 | Y450-8 | 450 | 6000 | ||
| 590 | 704 | 46.6 | 135.2 | 66.1 | 3.8 | Y355L2-10 | 160 | 380 |
| 1258 | 42.9 | 189.6 | 77.5 | Y450-10 | 220 | 6000 | ||
| 1408 | 41.2 | 201.5 | 78.4 | Y450-10 | 250 | 6000 | ||
Note: the above are the common models, but others can be customized.

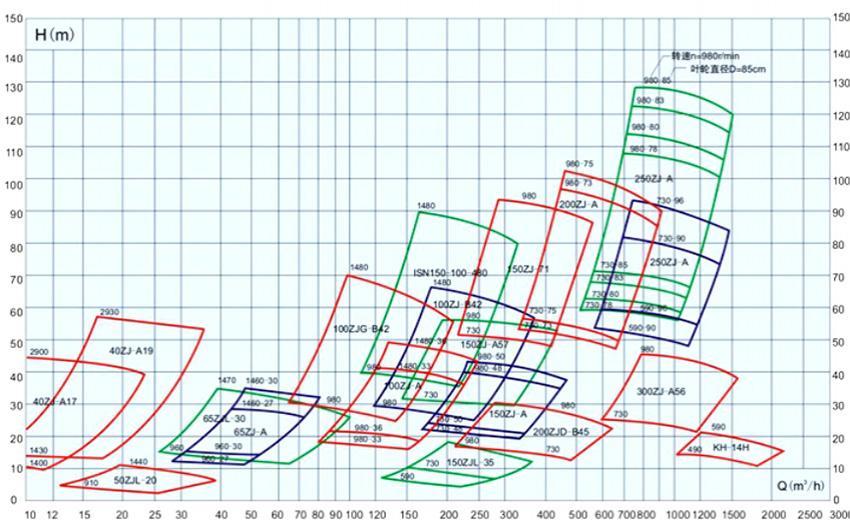

Quick selection chart
